Ferrules

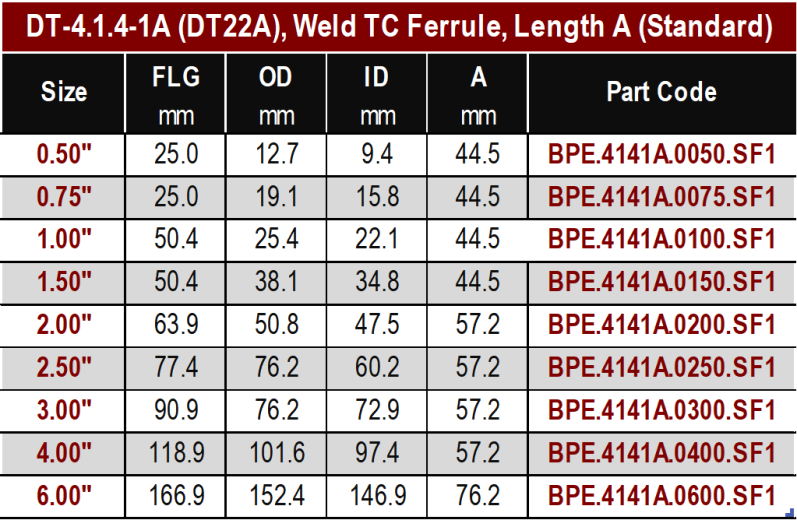

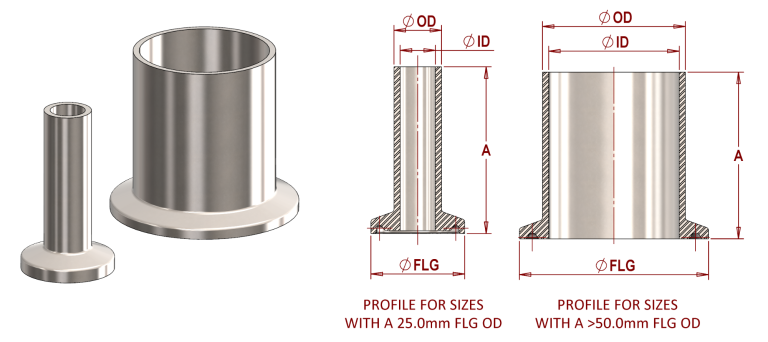

DT-4.1.4-1A

TC Ferrules, Weld Ended, Standard Length A
316L Stainless Steel, 0.4Ra um Finish

DT22 Clamp Ferrules

BPE Ferrules Long DT22

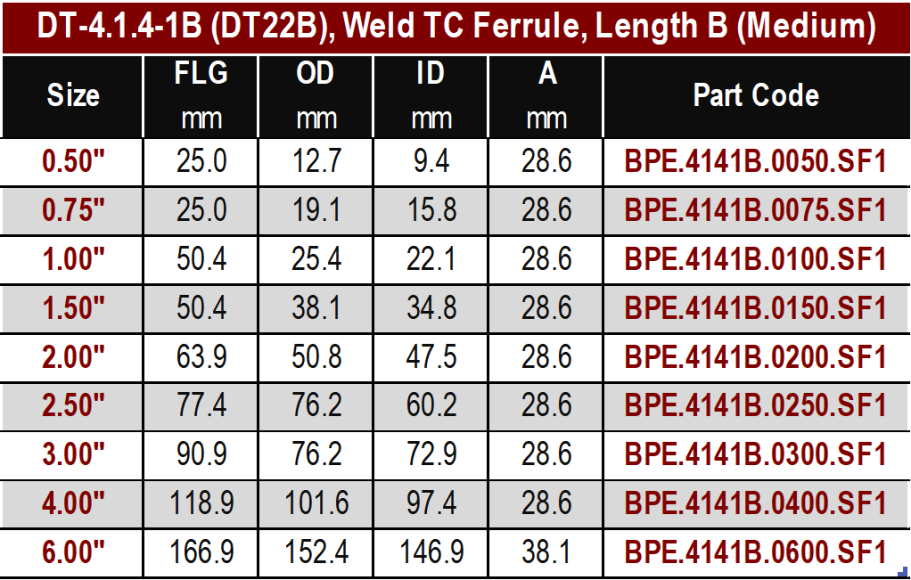

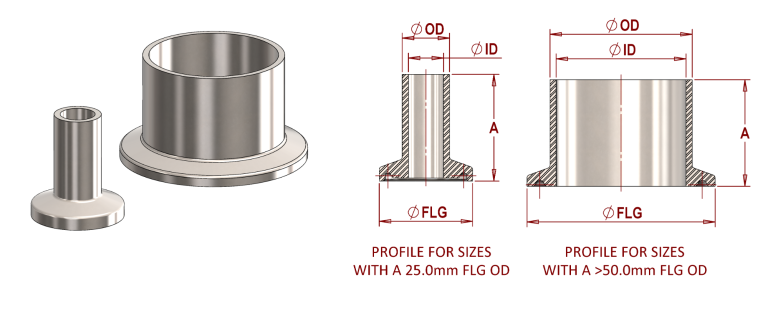

DT-4.1.4-1B

TC Ferrules, Weld Ended, Medium Length B
316L Stainless Steel, 0.4Ra um Finish

Tri Clamp Ferrule DT22

BPE Ferrule DT22

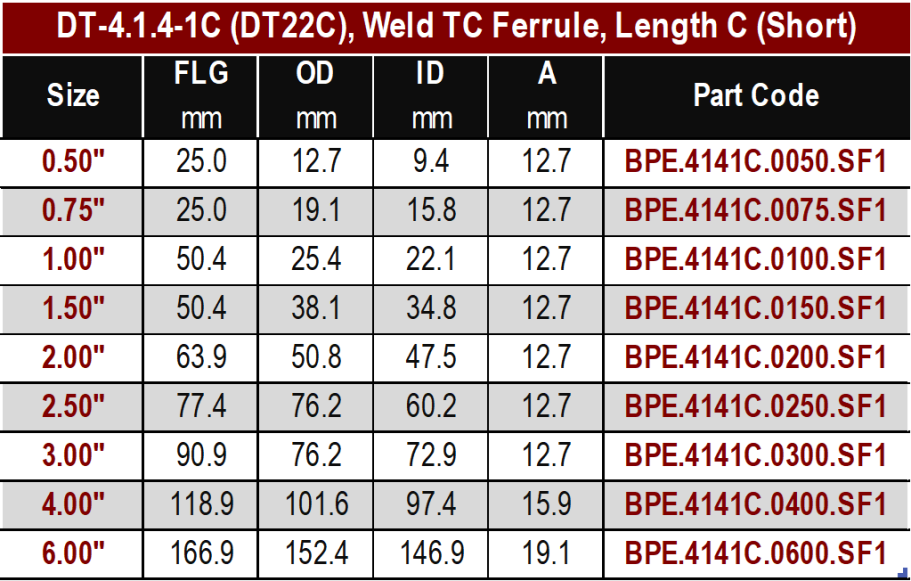

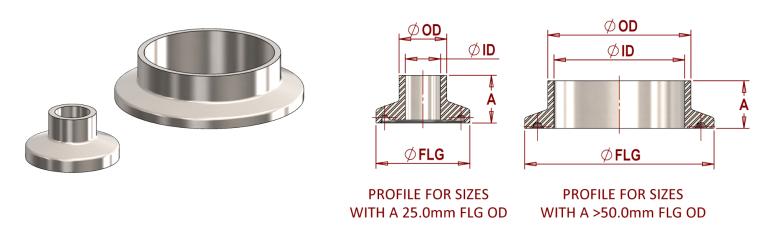

DT-4.1.4-1C

TC Ferrules, Weld Ended, Short Length C
316L Stainless Steel, 0.4Ra um Finish

DT22 Clamp Ferrules

BPE Ferrule Short DT22
